Ball Stem Retainer Flex Kits FLEXKIT-031 / 670-21409

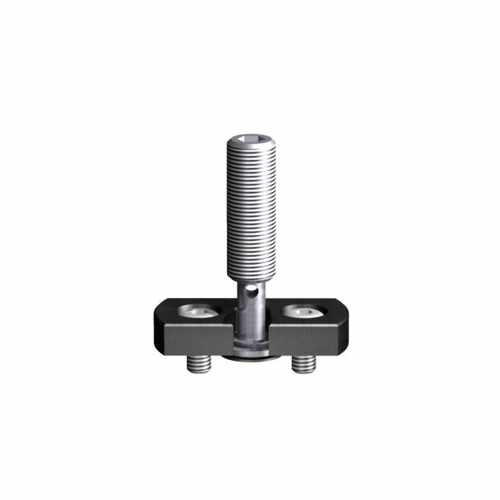

Air Bearing Ball Stem Retainer Flex Kit, includes ball stem, retainer bracket, load disc, flex disc, two retainer screws
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Maximum Flexure load, lbs [N] | 31 [136] |
| Physical Properties: | |

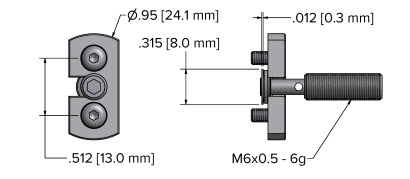

| Outside Diameter, inch [mm] | 0.95 [24.1] |
| Length, inch [mm] | 1.06 [27.0] |
| Width, inch [mm] | 0.45 [11.4] |
| Hex Socket, inch [mm] | 0.118 [3.00] |
| Ball Seat Radius, inch [mm] | 0.118 [3.00] |
| Ball Stem Thread, metric | M6 X 0.5 |
| Hole spacing, inch [mm] | 0.02 [0.5] |
| Travel, inch [mm] | 0.010 [0.3] |
