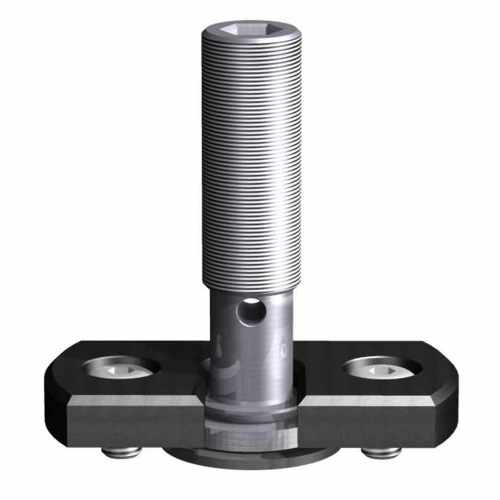

Ball Stem Retainer Flex Kits FLEXKIT-556 / 670-21421
Air Bearing Ball Stem Retainer Flex Kit, includes ball stem, retainer bracket, load disc, flex disc, two retainer screws
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Maximum Flexure load, lbs [N] | 556 [2446] |
| Physical Properties: | |
| Outside Diameter, inch [mm] | 2.00 [50.8] |
| Length, inch [mm] | 2.01 [51.0] |
| Width, inch [mm] | 1.00 [25.4] |
| Hex Socket, inch [mm] | 0.236 [6.00] |
| Ball Seat Radius, inch [mm] | 0.315 [8.00] |
| Ball Stem Thread, metric | M12 X 0.5 |
| Hole spacing, inch [mm] | 0.05 [1.3] |
| Travel, inch [mm] | 0.020 [0.5] |
