Elbow Fittings M3EB16 / 300-10600

Number of Units:

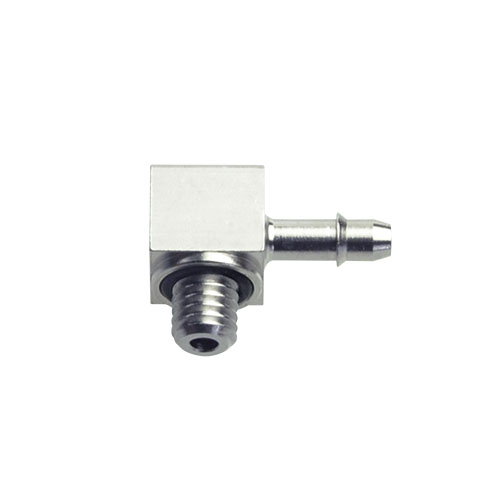

M3, ELBOW BARBED FITTING FOR 1.6MM I.D. TUBING

View Related Products ▾
Downloads:

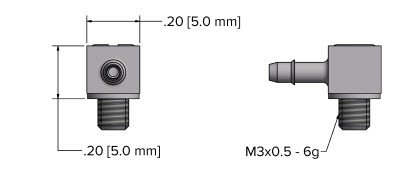

Drawing Download
Solid Model
Physical Properties:
Tubing Inside Diameter, inch [mm] 0.06 [1.6]
Thread, metric M3x0.5
Fastening Method SLOTTED
Overall length, inch [mm] 0.42 [10.6]
Width, inch [mm] 0.197
Installed Height, inch [mm] 0.20 [5.0]
Max. Supply Pressure, psig [Mpa] 100 [0.69]
Material Electrol Nickel Plated Brass
