Straight Fittings M3SB16 / 300-10400

Number of Units:

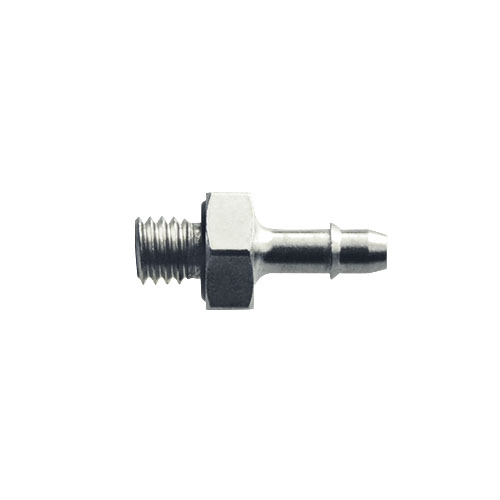

M3, STRAIGHT BARBED FITTING FOR 1.6MM I.D. TUBING

View Related Products ▾
Downloads:
Drawing Download
Solid Model
Physical Properties:

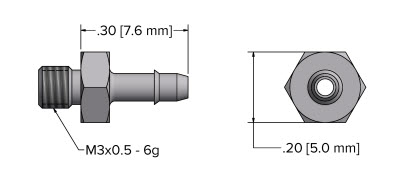

Tubing Inside Diameter, inch [mm] 0.06 [1.6]
Thread, metric M3x0.5
Fastening Method 5mm [.197] HEX
Overall length, inch [mm] 0.41 [10.5]
Width, inch [mm] NA
Installed Height, inch [mm] 0.30 [7.5]
Max. Supply Pressure, psig [Mpa] 100 [0.69]
Material Electrol Nickel Plated Brass
