Elbow Fittings M5EB16 / 300-10610

Number of Units:

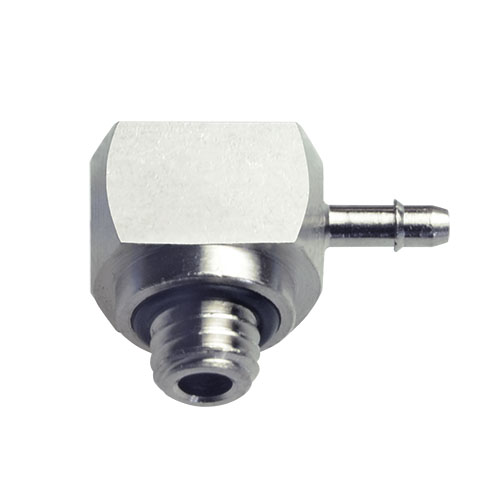

M5, ELBOW BARBED FITTING FOR 1.6MM I.D. TUBING

View Related Products ▾
Downloads:
Drawing Download
Solid Model

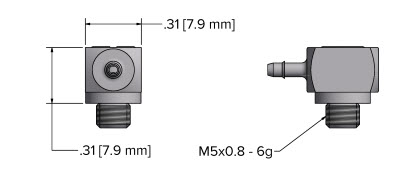

Physical Properties:
Tubing Inside Diameter, inch [mm] 0.06 [1.6]
Thread, metric M5x0.8
Fastening Method SLOTTED
Overall length, inch [mm] 0.63 [15.9]
Width, inch [mm] 0.311
Installed Height, inch [mm] 0.31 [7.9]
Max. Supply Pressure, psig [Mpa] 100 [0.69]
Material Electrol Nickel Plated Brass
