Elbow Fittings M5EB32 / 300-10620

Number of Units:

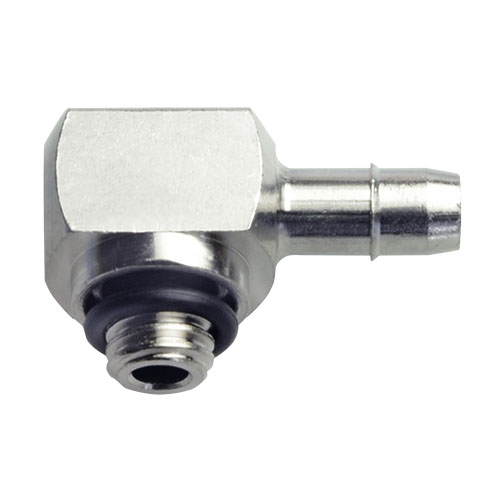

M5, ELBOW BARBED FITTING FOR 3.2MM I.D. TUBING

Downloads:

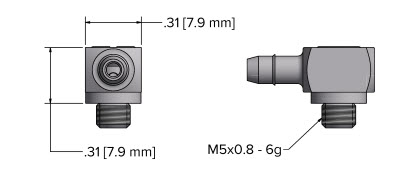

Drawing Download
Solid Model
Physical Properties:
Tubing Inside Diameter, inch [mm] 0.13 [3.2]
Thread, metric M5x0.8
Fastening Method SLOTTED
Overall length, inch [mm] 0.72 [18.3]
Width, inch [mm] 0.311
Installed Height, inch [mm] 0.31 [7.9]
Max. Supply Pressure, psig [Mpa] 100 [0.69]
Material Electrol Nickel Plated Brass
Number of Units:
