Straight Fittings M5SB16 / 300-10410

Number of Units:

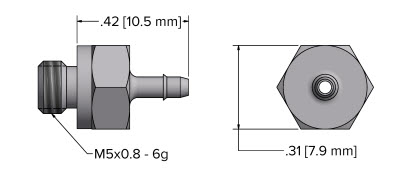

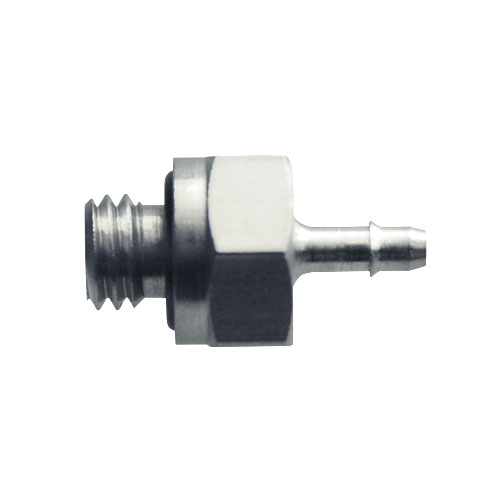

M5, STRAIGHT BARBED FITTING FOR 1.6MM I.D. TUBING

View Related Products ▾
Downloads:
Drawing Download
Solid Model
Physical Properties:
Tubing Inside Diameter, inch [mm] 0.06 [1.6]
Thread, metric M5x0.8
Fastening Method 7.9mm [.311] HEX
Overall length, inch [mm] 0.56 [14.3]
Width, inch [mm] NA
Installed Height, inch [mm] 0.41 [10.3]
Max. Supply Pressure, psig [Mpa] 100 [0.69]
Material Electrol Nickel Plated Brass
