Pedestals PED-0300-32 / 680-10425

Number of Units:

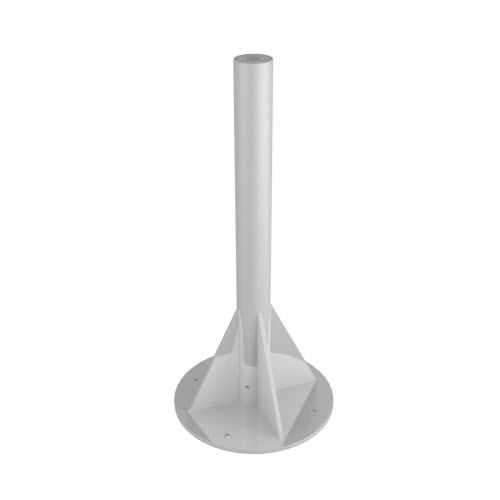

Pedestal, welded steel construction, painted

View Related Products ▾
Downloads:

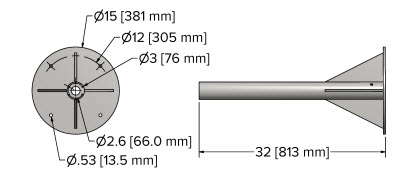

Diagram
Solid Model
Physical Properties:
Base diameter, inch [mm] 15.00 [381.0]
Height, inch [mm] 32.00 [812.8]
Base mounting bolt circle diameter, inch [mm] 12.00 [304.8]
Base mounting hole diameter, inch [mm] 0.53 [13.5]
Air Bearing Attachment Bolt Circle Diameter (standard), inch [mm] 2.60 [66.0]
Column Diameter, inch [mm] 3.00 [76.2]
Material Steel
