Pedestals PED-0350-32 / 680-10435

Number of Units:

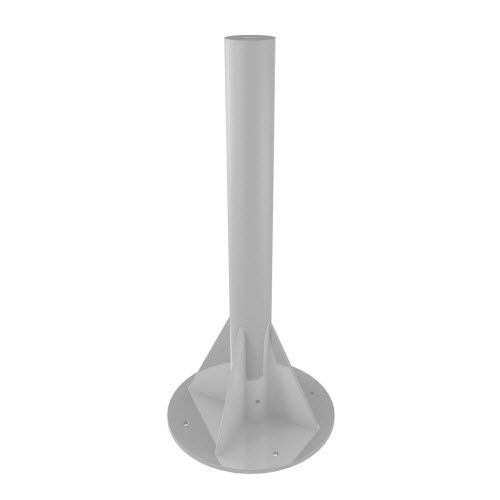

Pedestal, welded steel construction, painted

Downloads:

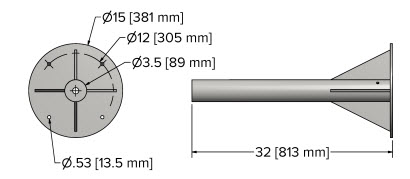

Diagram
Solid Model
Physical Properties:
Base diameter, inch [mm] 15.00 [381.0]
Height, inch [mm] 32.00 [812.8]
Base mounting bolt circle diameter, inch [mm] 12.00 [304.8]
Base mounting hole diameter, inch [mm] 0.53 [13.5]
Air Bearing Attachment Bolt Circle Diameter (standard), inch [mm] Customer to specify
Column Diameter, inch [mm] 3.50 [88.9]
Material Steel
