Pedestals PED-0600-36 / 680-10220

Number of Units:

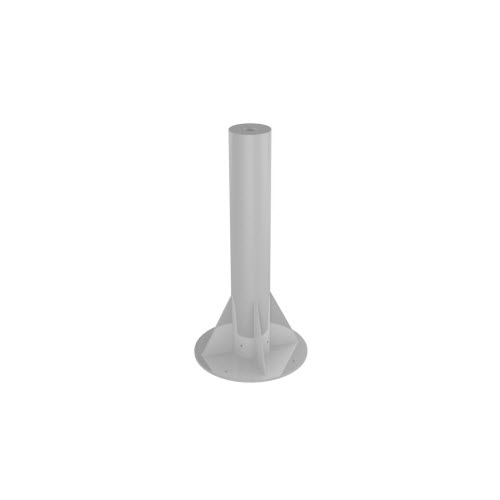

Pedestal, welded steel construction, painted

View Related Products ▾
Downloads:

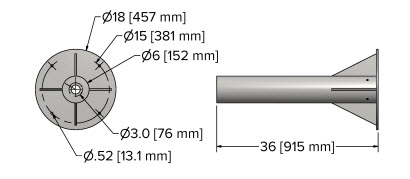

Diagram
Solid Model
Physical Properties:
Base diameter, inch [mm] 18.00 [457.2]
Height, inch [mm] 36.00 [914.4]
Base mounting bolt circle diameter, inch [mm] 15.00 [381.0]
Base mounting hole diameter, inch [mm] 0.52 [13.2]
Air Bearing Attachment Bolt Circle Diameter (standard), inch [mm] 3.00 [76.2]
Column Diameter, inch [mm] 6.00 [152.4]
Material Steel
