Spherical Mirrors

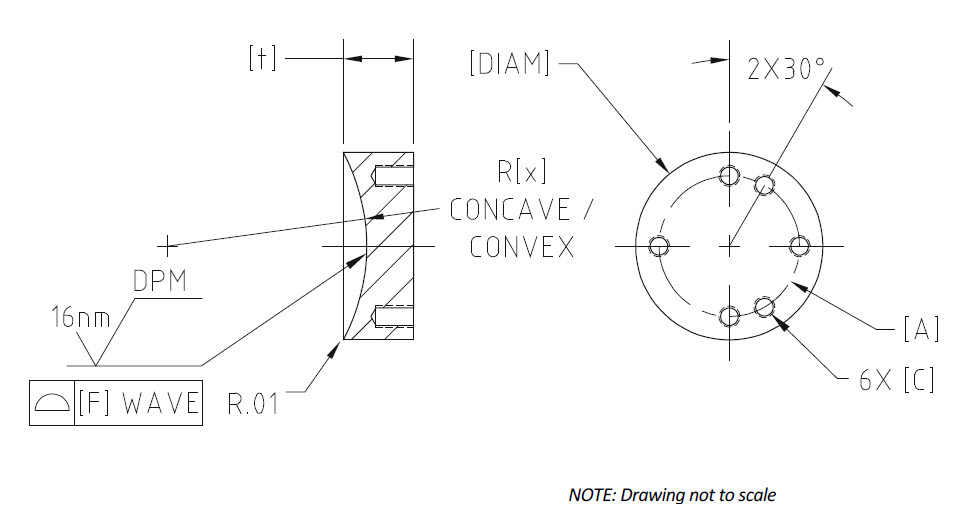

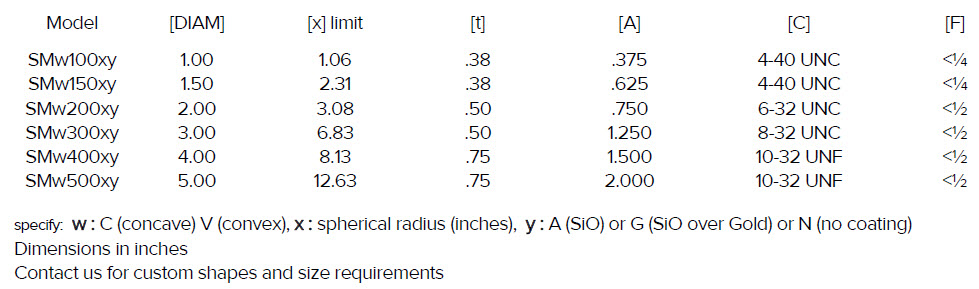

These spherical first-surface Aluminum mirrors are useful in reflecting light in the infrared range.  Guaranteed at ½, ¼ or 1/8 waveform accuracy with <16nm Ra surface finish.  Select from protected Aluminum, protected Gold or untreated coatings combined with your choice of size and reflecting angle.  Convenient mounting features allow for precise centering and direction of the referenced beam.  Thermal stress relieving and a mounting surface flatness of  ½   wave allows for distortion free assembly.

Custom sizes and configurations are available on request. Specifications are subject to change.
