Pedestals PED-0375-32 / 680-10222

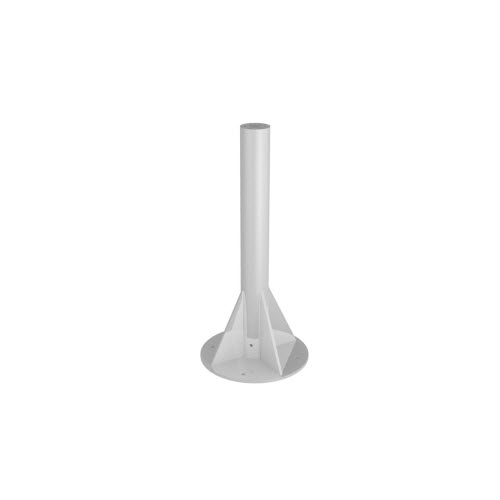

Pedestal, welded steel construction, painted
| Downloads: | |
|---|---|

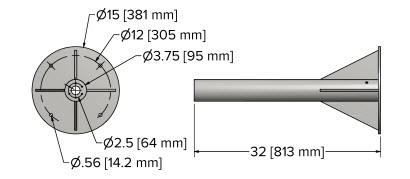

| Diagram | |
| Solid Model | |
| Physical Properties: | |
| Base diameter, inch [mm] | 15.00 [381.0] |
| Height, inch [mm] | 32.00 [812.8] |
| Base mounting bolt circle diameter, inch [mm] | 12.00 [304.8] |
| Base mounting hole diameter, inch [mm] | 0.56 [14.2] |
| Air Bearing Attachment Bolt Circle Diameter (standard), inch [mm] | 2.50 [63.5] |
| Column Diameter, inch [mm] | 3.75 [95.3] |
| Material | Steel |
