Pedestals PED-1000-71 / 680-31988

Number of Units:

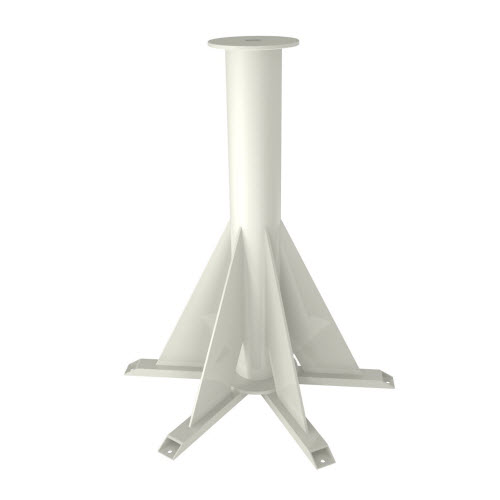

Pedestal, welded steel construction, painted

View Related Products ▾
Downloads:

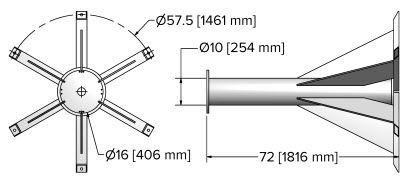

Diagram
Solid Model
Physical Properties:
Base diameter, inch [mm] 60.00 [1524.0]
Height, inch [mm] 72.00 [1828.8]
Base mounting bolt circle diameter, inch [mm] 57.50 [1460.5]
Base mounting hole diameter, inch [mm] 0.88 [22.2]
Air Bearing Attachment Bolt Circle Diameter (standard), inch [mm] 14.88 [377.8]
Column Diameter, inch [mm] 10.00 [254.0]
Material Steel
