Ball Stem Retainer Flex Kits FLEXKIT-346 / 670-21420

Number of Units:

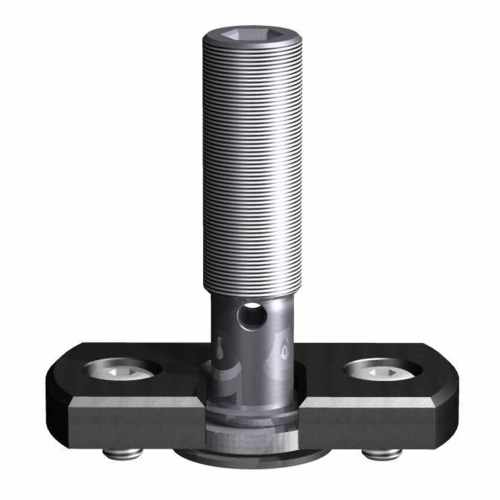

Air Bearing Ball Stem Retainer Flex Kit, includes ball stem, retainer bracket, load disc, flex disc, two retainer screws

View Related Products ▾
Downloads:

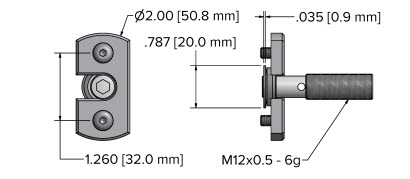

Drawing Download
Solid Model
User Instructions
Comparison Table
Performance:
Maximum Flexure load, lbs [N] 346 [1522]
Physical Properties:
Outside Diameter, inch [mm] 2.00 [50.8]
Length, inch [mm] 2.01 [51.0]
Width, inch [mm] 1.00 [25.4]
Hex Socket, inch [mm] 0.236 [6.00]
Ball Seat Radius, inch [mm] 0.315 [8.00]
Ball Stem Thread, metric M12 X 0.5
Hole spacing, inch [mm] 0.05 [1.3]
Travel, inch [mm] 0.018 [0.5]
