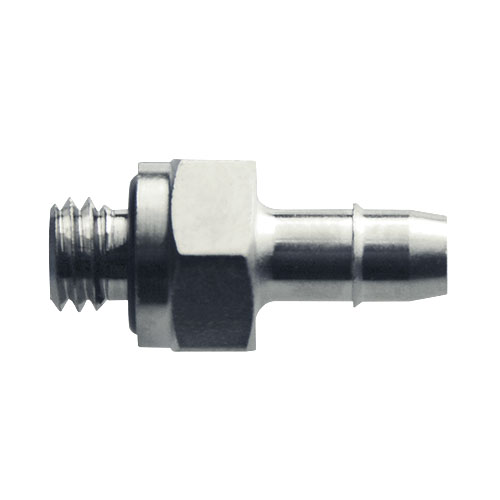

Straight Fittings M5SB32 / 300-10420
M5, STRAIGHT BARBED FITTING FOR 3.2MM I.D. TUBING
| Downloads: | |
|---|---|

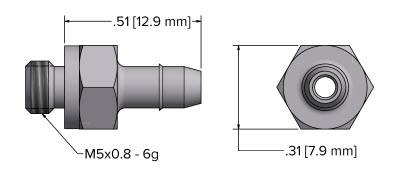

| Drawing Download | |
| Solid Model | |
| Physical Properties: | |
| Tubing Inside Diameter, inch [mm] | 0.13 [3.2] |
| Thread, metric | M5x0.8 |
| Fastening Method | 7.9mm [.311] HEX |
| Overall length, inch [mm] | 0.65 [16.4] |
| Width, inch [mm] | NA |
| Installed Height, inch [mm] | 0.50 [12.7] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Material | Electrol Nickel Plated Brass |
