Pedestals PED-0400-42 / 680-10430

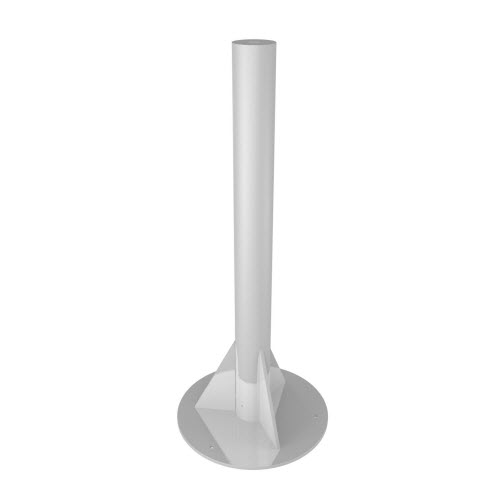

Pedestal, welded steel construction, painted
| Downloads: | |
|---|---|

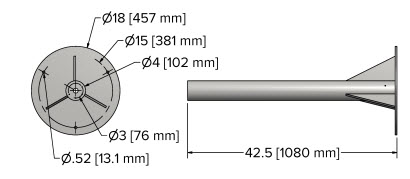

| Diagram | |
| Solid Model | |
| Physical Properties: | |
| Base diameter, inch [mm] | 18.00 [457.2] |
| Height, inch [mm] | 42.50 [1079.5] |
| Base mounting bolt circle diameter, inch [mm] | 15.00 [381.0] |
| Base mounting hole diameter, inch [mm] | 0.52 [13.2] |
| Air Bearing Attachment Bolt Circle Diameter (standard), inch [mm] | 3.00 [76.2] |
| Column Diameter, inch [mm] | 4.00 [101.6] |
| Material | Steel |
