Ball Stem Retainer Kits STEMKIT-20 / 670-21412

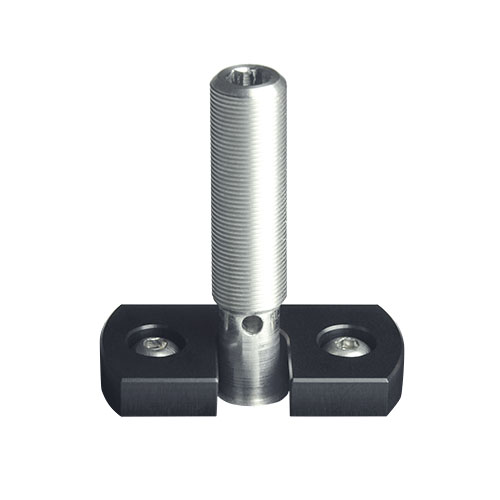

Air Bearing Ball Stem Retainer Kit, includes ball stem, retainer bracket, two retainer screws
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |

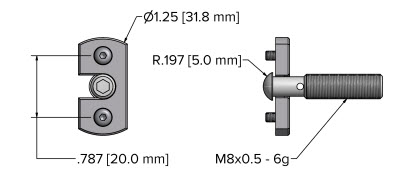

| Physical Properties: | |
| Outside Diameter, inch [mm] | 1.25 [31.8] |
| Length, inch [mm] | 1.06 [27.0] |
| Width, inch [mm] | 0.63 [15.9] |
| Hex Socket, inch [mm] | 0.118 [3.00] |
| Ball Stem Radius, inch [mm] | 0.118 [3.00] |
| Ball Stem Thread, mm | M6 X 0.5 |
| Hole spacing, inch [mm] | 0.79 [20.0] |
