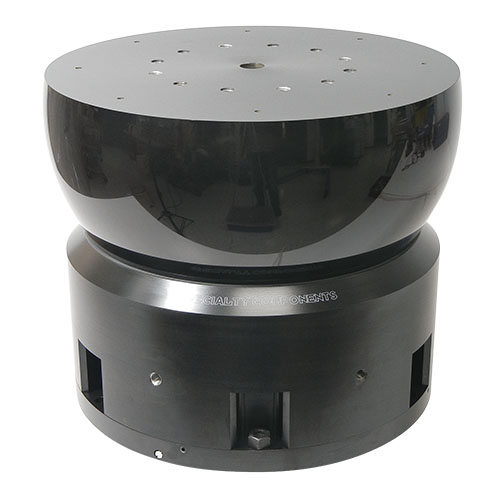

Spherical Air Bearings SRA850-R45 / 620-39129
The largest of the standard series, the SRA850-R45 spherical air bearing supports vertical loads of over 12000 pounds and side loads of nearly 2000 pounds. Full-scale satellite simulation or other heavy load applications will benefit from the frictionless rotation provided by this air bearing. The optional locking assembly and upper plate reliably secure the sphere while hardware is attached. Accurate and stable performance results from over 40 million pounds per inch vertical air film stiffness. Pneumatic hammering of the air film can plague an air bearing design and result in unstable bearing performance. Unlike other spherical air bearings, the SRA series eliminates this possibility by including vibration dampening features within the design.
| Downloads: | |
|---|---|
| Drawing Download | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 12180 [53592] |
| Side Load Capacity, lbs[N] | 1927 [8479] |
| Stiffness, lbs/inch [N/µm] | 43000000 [7449] |
| Flow Rate, scfh [slpm] | 199.2 [94.0] |
| Air gap, microinches [µm] | 200 [5] |
| Natural Frequency*, Hz | 186 |
| Drag Torque at 30 rpm, oz-in [N-m] | 0.00E+00 [0.00E+00] |
| Physical Properties: | |

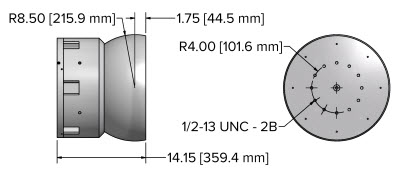

| Base Diameter, inches [mm] | 15.9 [403.4] |
| Bearing Height, inches [mm] | 14.2 [359.4] |
| Pedestal Adapter Height, inches [mm] | NA |
| Spherical Radius inches [mm] | 215.9 [8.5] |
| Rotational Travel, deg | 45 |
| Sphere mounting bolt circle diameter, inches [mm] | 8.000 [0.2] |
| Sphere mounting thread, Unified | 1/2-13 |
| Air Supply fitting thread, imperial [metric] | 1/4-NPT [10-32] |
| Material | Aluminum |
| Assembly Weight, lbs [N] | 273.000 [1201.2] |
| Sphere Weight, lbs [N] | 164.000 [721.6] |
| Installation Requirements: | |
| Sphere Mating Surface Required Flatness, inches [µm] | .002 [50] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Vacuum, inHg [Mpa] | 20 [.06] |
| Rated Supply Pressure, psig [Mpa] | 145 [1.00] |
| Max. Supply Pressure, psig [Mpa] | 160 [1.10] |
| Air Quality | ISO Class 3 or better preferred |
