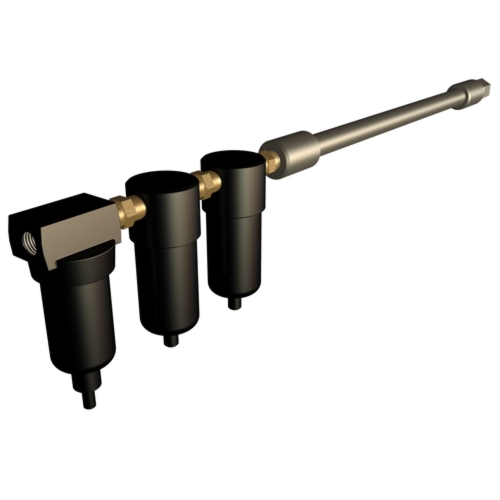

Filtration Assemblies 3-SCFM ACS / 690-27415
3-SCFM ACS Air Bearing Filtration System, properly conditions, cleans and dries supply to air bearing at 3 SCFM [85 SLPM] maximum flow rate, includes all filter elements
| Downloads: | |
|---|---|

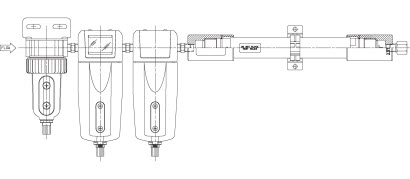

| Drawing Download | |
| User Instructions | |
| Performance: | |
| Flow @ 100 psig, scfm [slpm] | 3 [85] |
| Air Consumption, scfm [slpm] | 3.50 [99] |
| Max Inlet Pressure, psig [MPa] | 150 [1.0] |
| Electrical Requirements | NONE |
| Max Inlet Air Temperature, °F [°C] | 100 [38] |
| Physical Properties: | |
| Length, inch [mm] | 25.8 [656] |
| Width, inch [mm] | 2.9 [75] |
| Height, inch [mm] | 9.4 [238] |
| Inlet fitting thread | 1/4" NPT FEMALE |
| Outlet fitting thread | 1/4" NPT FEMALE |
