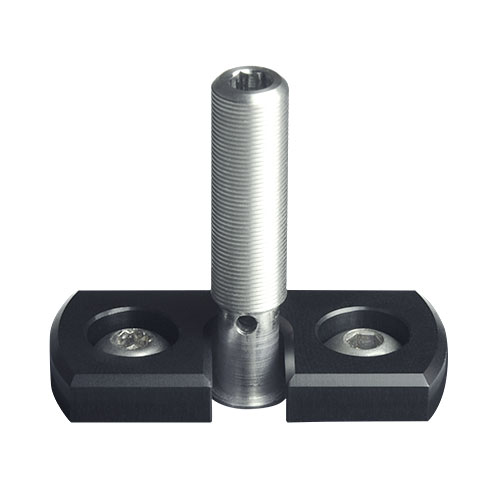

Ball Stem Retainer Kits STEMKIT-24 / 670-21414
Air Bearing Ball Stem Retainer Kit, includes ball stem, retainer bracket, two retainer screws
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |

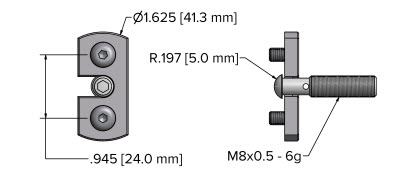

| Physical Properties: | |
| Outside Diameter, inch [mm] | 1.63 [41.3] |
| Length, inch [mm] | 1.54 [39.0] |
| Width, inch [mm] | 0.75 [19.1] |
| Hex Socket, inch [mm] | 0.157 [4.00] |
| Ball Stem Radius, inch [mm] | 0.197 [5.00] |
| Ball Stem Thread, mm | M8 X 0.5 |
| Hole spacing, inch [mm] | 0.94 [24.0] |
