Circular Flat Air Bearings LRAP200 / 610-22453

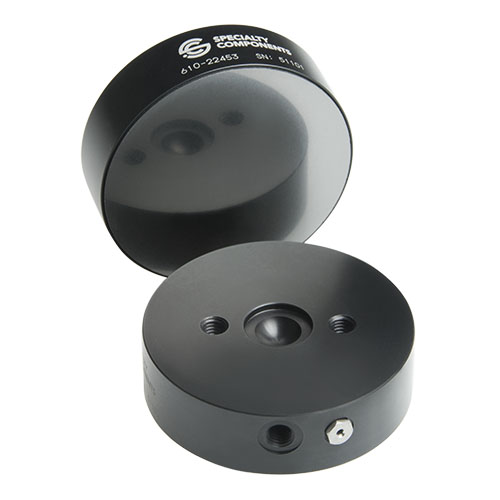

The 2 inch diameter LRAP200 air bearing allows translational or rotational motion in a plane. The LRA series bearings can be combined in an assembly to constrain motion in various degrees. With a nominal air gap of 5 microns, the LRA series exhibit zero wear of the mating surfaces.
| Downloads: | |
|---|---|

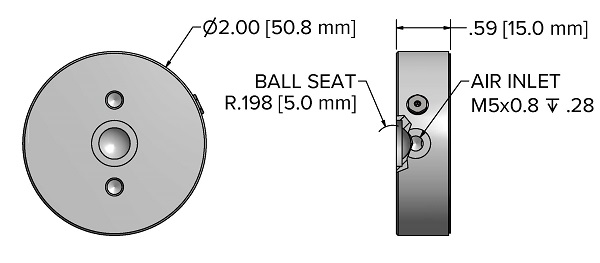

| Drawing Download | |
| Solid Model | |

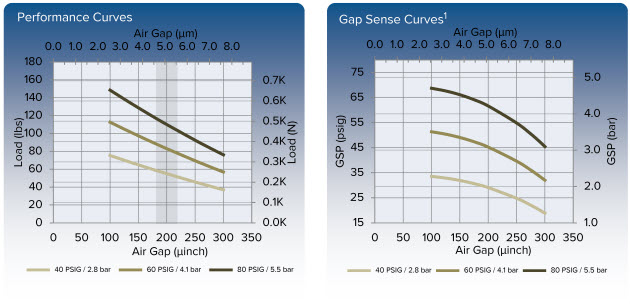

| Performance Graph | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 106 [466] |
| Stiffness, lbs/inch [N/µm] | 361667 [63] |
| Flow Rate, scfh [slpm] | 2.1 [1.0] |
| Air gap, microinches [µm] | 200 [5] |
| Average Gap Sense Pressure at Rated Load, psig [Mpa] | 61 [0.42] |
| Natural Frequency*, Hz | 183 |
| Physical Properties: | |
| Diameter, inches [mm] | 2.0 [50.8] |
| Height, inches [mm] | 0.59 [15.0] |
| Ball Seat Diameter, inches [mm] | 0.394 [10.0] |
| Mating Ball Stem Model number | R5M8 |
| Air Bearing Surface Flatness, microinches [µm] | 20 [0.5] |
| Supply fitting thread, metric [imperial] | M5 [10-32] |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.160 [0.7] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
