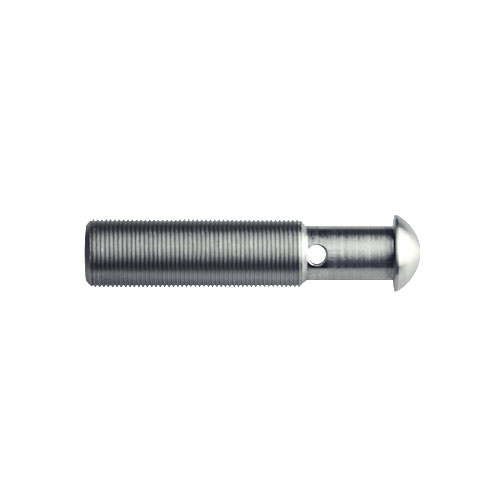

Ball Stems R5M8 / 100-21437
Ball Stem, 5 mm radius, M8 x 0.5mm thread
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |

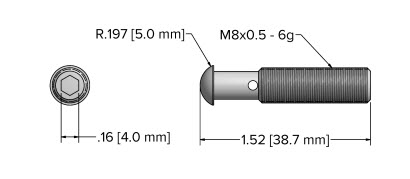

| Physical Properties: | |
| Outside Diameter, inch [mm] | 0.31 [8.0] |
| Length, inch [mm] | 1.54 [39.0] |
| Hex Socket, inch [mm] | 0.157 [4.00] |
| Ball Stem Radius, inch [mm] | 0.197 [5.00] |
| Ball Stem Thread, metric | M8 X 0.5 |
| Material | Stainless Steel |
