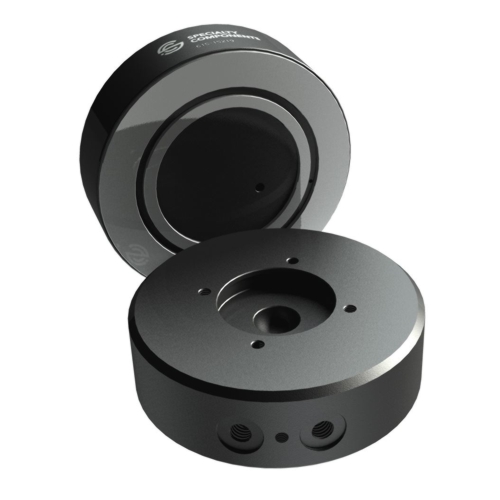

Circular Flat Vacuum Preloaded Air Bearings LRAVP250 / 615-15219
The model LRAVP250 air bearing has a 2.5 inch diameter and a 34 pound load capacity. A vacuum pocket located in the center of the bearing surface incorporates a secondary seal to allow for a nearly constant preload force of about 16 pounds. This helps achieve an air film stiffness of about 120,000 lbs/inch. The flat bearing surface carries loads without friction along guideways at a nominal air gap of 5 microns. Load may be imparted through a centrally located ball seat on the top surface of the air bearing.
| Downloads: | |
|---|---|
| Drawing Download | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 34 [150] |
| Stiffness, lbs/inch [N/µm] | 120000 [21] |
| Vacuum Holding Force at Rated Vacuum, lbs[N] | 16 [68] |
| Ball Seat Preload Force at Rated Vacuum, lbs[N] | 8 [35] |
| Flow Rate, scfh [slpm] | 2.6 [1.2] |
| Air gap, microinches [µm] | 200 [5] |
| Natural Frequency*, Hz | 186 |
| Physical Properties: | |
| Diameter, inches [mm] | 2.5 [63.5] |
| Height, inches [mm] | 0.7 [18.0] |
| Ball Seat Diameter, inches [mm] | 0.394 [10.0] |
| Mating Ball Stem Model number | R5M8 |
| Air Bearing Surface Flatness, microinches [µm] | 20 [0.5] |
| Air / Vacuum Supply fitting thread, imperial [metric] | M5 [10-32] |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.321 [1.4] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Vacuum, inHg [Mpa] | 20 [.06] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
