Ball Stem Retainer Kits STEMKIT-32 / 670-21418

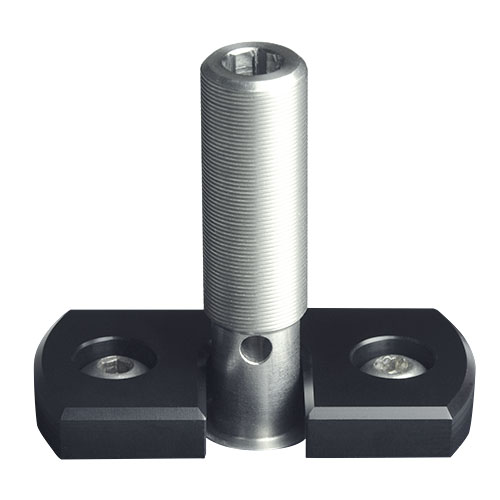

Air Bearing Ball Stem Retainer Kit, includes ball stem, retainer bracket, two retainer screws
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |
| Physical Properties: | |

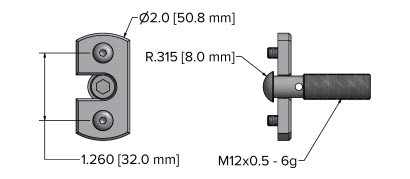

| Outside Diameter, inch [mm] | 2.00 [50.8] |
| Length, inch [mm] | 2.01 [51.0] |
| Width, inch [mm] | 1.00 [25.4] |
| Hex Socket, inch [mm] | 0.236 [6.00] |
| Ball Stem Radius, inch [mm] | 0.236 [6.00] |
| Ball Stem Thread, mm | M12 X 0.5 |
| Hole spacing, inch [mm] | 1.26 [32.0] |
