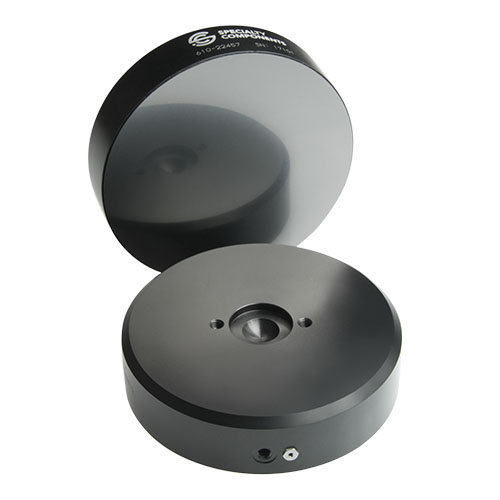

Circular Flat Air Bearings LRAP400 / 610-22457
Able to support over 500 pounds of load force, this 4 inch diameter air bearing will move large stage assemblies without friction. Remarkably, this bearing is supported by a cushion of air only 5 microns in thickness and has the same stiffness as a normally loaded solid piece of steel 2 inches in diameter, 7 inches long.
| Downloads: | |
|---|---|

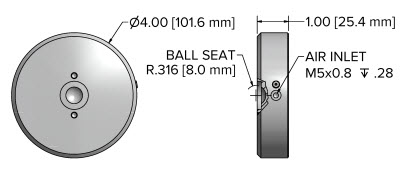

| Drawing Download | |
| Solid Model | |

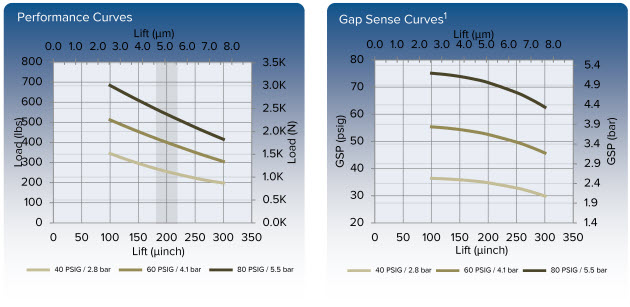

| Performance Graph | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 533 [2345] |
| Stiffness, lbs/inch [N/µm] | 1300000 [225] |
| Flow Rate, scfh [slpm] | 4.8 [2.3] |
| Air gap, microinches [µm] | 200 [5] |
| Average Gap Sense Pressure at Rated Load, psig [Mpa] | 72 [0.50] |
| Natural Frequency*, Hz | 154 |
| Physical Properties: | |
| Diameter, inches [mm] | 4.0 [101.6] |
| Height, inches [mm] | 1.00 [25.4] |
| Ball Seat Diameter, inches [mm] | 0.630 [16.0] |
| Mating Ball Stem Model number | R8M12 |
| Air Bearing Surface Flatness, microinches [µm] | 20 [0.5] |
| Supply fitting thread, metric [imperial] | M5 [10-32] |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 1.144 [5.0] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
