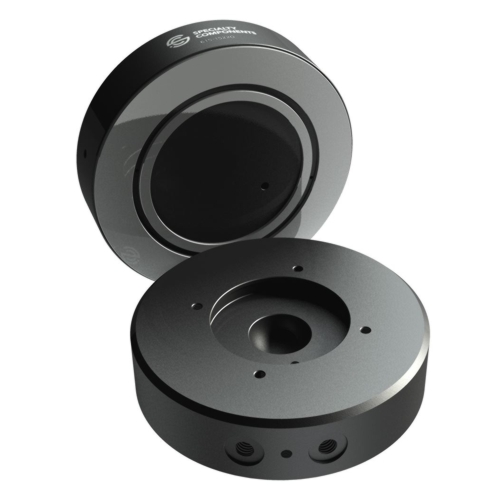

Circular Flat Vacuum Preloaded Air Bearings LRAVP300 / 615-15220
The 3 inch diameter LRAVP300 air bearing allows translational or rotational motion in a plane while providing a vacuum preload force of about 24 pounds. The LRAV series air bearings allow for fewer bearing components when combined in an assembly to constrain motion to various degrees. With a nominal air gap of 5 microns, the LRAV series exhibit zero wear and no friction of the mating surfaces.
| Downloads: | |
|---|---|
| Drawing Download | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 51 [224] |
| Stiffness, lbs/inch [N/µm] | 235000 [41] |
| Vacuum Holding Force at Rated Vacuum, lbs[N] | 24 [106] |
| Ball Seat Preload Force at Rated Vacuum, lbs[N] | 15 [68] |
| Flow Rate, scfh [slpm] | 2.9 [1.4] |
| Air gap, microinches [µm] | 200 [5] |
| Natural Frequency*, Hz | 212 |
| Physical Properties: | |

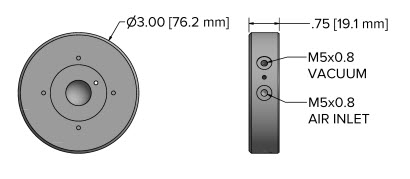

| Diameter, inches [mm] | 3.0 [76.2] |
| Height, inches [mm] | 0.8 [19.1] |
| Ball Seat Diameter, inches [mm] | 0.630 [16.0] |
| Mating Ball Stem Model number | R8M12 |
| Air Bearing Surface Flatness, microinches [µm] | 20 [0.5] |
| Air / Vacuum Supply fitting thread, imperial [metric] | M5 [10-32] |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.480 [2.1] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Vacuum, inHg [Mpa] | 20 [.06] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
