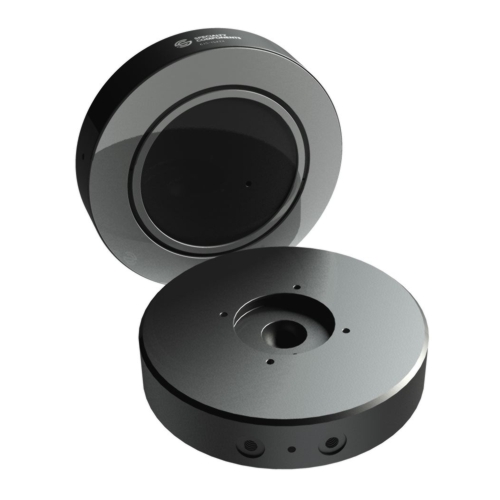

Circular Flat Vacuum Preloaded Air Bearings LRAVP400 / 615-15222
The circular LRAVP400 air bearing has a stiffness of 350,000 pounds per inch and supports loads of over 90 pounds. A vacuum pocket provides nearly 50 pounds of holding force to the mating surface while exhibiting frictionless, accurate, linear or rotary motion in a plane. Typical for air bearings of this type, the LRAV series bearings are more accurate than even the finest rolling element bearings by orders of magnitude.
| Downloads: | |
|---|---|
| Drawing Download | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 93 [409] |
| Stiffness, lbs/inch [N/µm] | 347000 [60] |
| Vacuum Holding Force at Rated Vacuum, lbs[N] | 48 [213] |
| Ball Seat Preload Force at Rated Vacuum, lbs[N] | 15 [68] |
| Flow Rate, scfh [slpm] | 3.5 [1.6] |
| Air gap, microinches [µm] | 200 [5] |
| Natural Frequency*, Hz | 191 |
| Physical Properties: | |

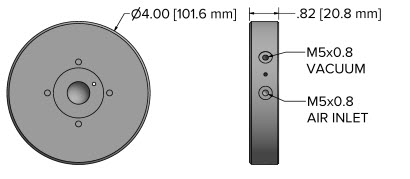

| Diameter, inches [mm] | 4.0 [101.6] |
| Height, inches [mm] | 0.8 [20.8] |
| Ball Seat Diameter, inches [mm] | 0.630 [16.0] |
| Mating Ball Stem Model number | R8M12 |
| Air Bearing Surface Flatness, microinches [µm] | 20 [0.5] |
| Air / Vacuum Supply fitting thread, imperial [metric] | M5 [10-32] |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.939 [4.1] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Vacuum, inHg [Mpa] | 20 [.06] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
