Circular Flat Air Bearings LRAP100 / 610-22451

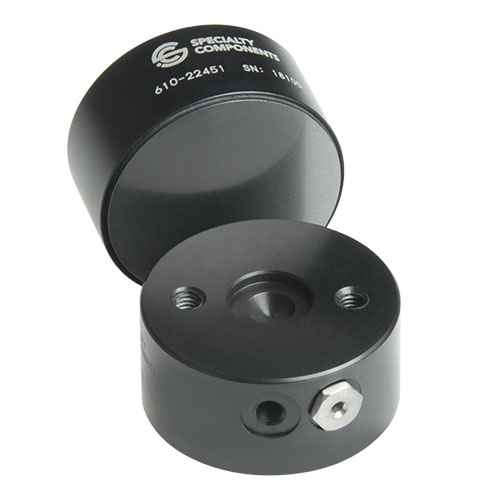

This flat circular air bearing supports frictionless planar (rotational or translational) motion. Weighing in at only 15 grams, the small, 1 inch diameter of this bearing allows the opposing mating surface to have a larger flatness tolerance. Best designed for the lightest of loads, it also has the smallest air consumption.
| Downloads: | |
|---|---|

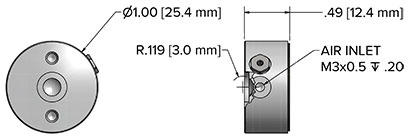

| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |

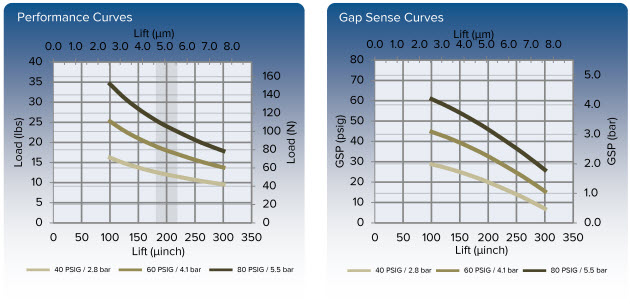

| Performance: | |
| Load Capacity, lbs[N] | 24 [106] |
| Stiffness, lbs/inch [N/µm] | 128333 [22] |
| Flow Rate, scfh [slpm] | 1.3 [0.6] |
| Air gap, microinches [µm] | 200 [5] |
| Average Gap Sense Pressure at Rated Load, psig [Mpa] | 50 [0.34] |
| Natural Frequency*, Hz | 229 |
| Physical Properties: | |
| Diameter, inches [mm] | 1.0 [25.4] |
| Height, inches [mm] | 0.49 [12.4] |
| Ball Seat Diameter, inches [mm] | 0.236 [6.0] |
| Mating Ball Stem Model number | R3M6 |
| Air Bearing Surface Flatness, microinches [µm] | 20 [0.5] |
| Supply fitting thread, metric [imperial] | M3 |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.033 [0.1] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
