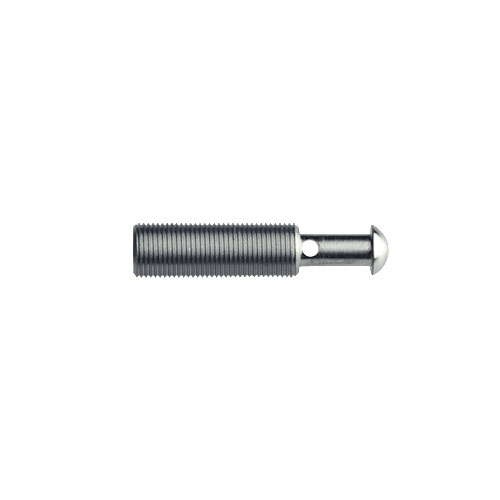

Ball Stems R3M6 / 100-21456

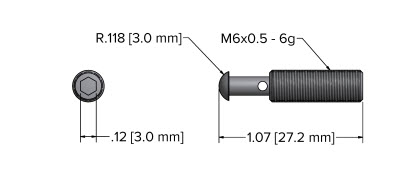

Ball Stem, 3 mm radius, M6 x 0.5mm thread
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Physical Properties: | |
| Outside Diameter, inch [mm] | 0.24 [6.0] |
| Length, inch [mm] | 1.06 [27.0] |
| Hex Socket, inch [mm] | 0.118 [3.00] |
| Ball Stem Radius, inch [mm] | 0.118 [3.00] |
| Ball Stem Thread, metric | M6 X 0.5 |
| Material | Stainless Steel |
