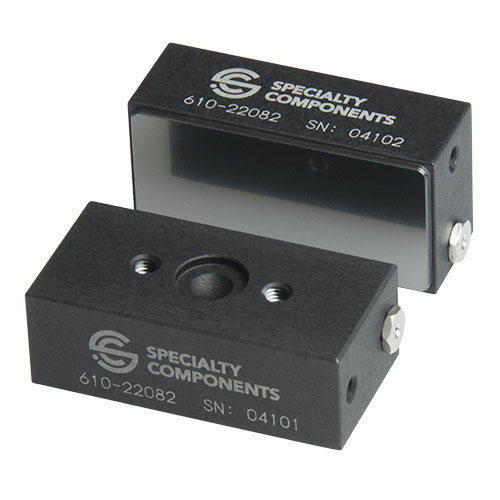

Rectangular Flat Air Bearings LSAP075150 / 610-22082
Frictionless linear or rotary motion in a plane can be achieved by using this small air bearing. Its rectangular shape can be placed efficiently within certain linear guideway applications. Despite its small surface area, this air bearing has a stiffness of over 160,000 lbs/inch and carries 30 pounds of load. As with all LSA series bearings, this air bearing has equal performance at zero, low and high speeds.
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |

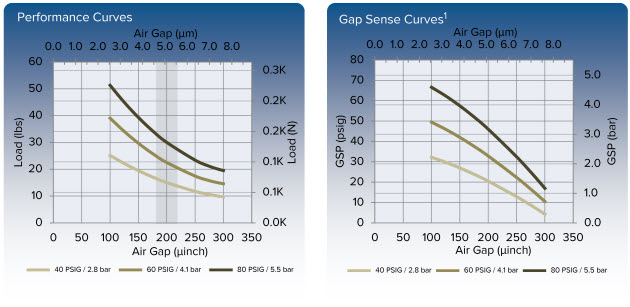

| Performance Graph | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 30 [132] |
| Stiffness, lbs/inch [N/µm] | 160000 [28] |
| Flow Rate, scfh [slpm] | 1.4 [0.7] |
| Air gap, microinches [µm] | 200 [5] |
| Average Gap Sense Pressure at Rated Load, psig [Mpa] | 46 [0.32] |
| Natural Frequency*, Hz | 228 |
| Physical Properties: | |

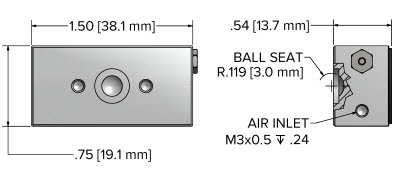

| Length, inches [mm] | 0.8 [19.1] |
| Width, inches [mm] | 1.5 [38.1] |
| Height, inches [mm] | 0.54 [13.7] |
| Ball Seat Diameter, inches [mm] | 0.236 [6.0] |
| Mating Ball Stem Model number | R3M6 |
| Bearing Flatness, microinches [µm] | 20 [0.5] |
| Supply fitting thread, metric [imperial] | M3 |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.053 [0.2] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
