Rectangular Flat Air Bearings LSAP063125 / 610-22081

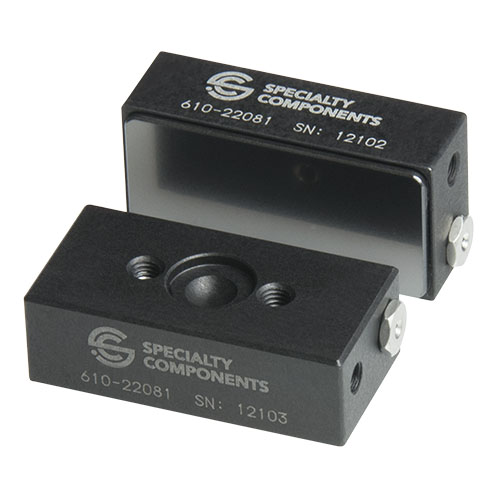

The model LSAP063125 air bearing measures 0.63 x 1.25 inches and has a 19 pound load capacity. Its flat bearing surface carries loads without friction along guideways at a nominal air gap of 5 microns. For all LSA series bearings, load may be imparted through a centrally located ball seat on the top surface of the air bearing.
| Downloads: | |
|---|---|

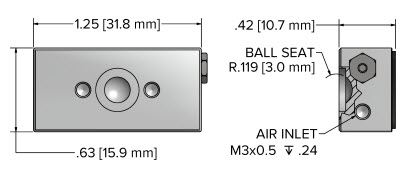

| Drawing Download | |
| Solid Model | |

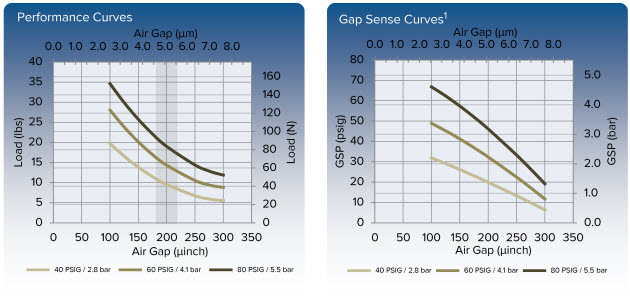

| Performance Graph | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 19 [84] |
| Stiffness, lbs/inch [N/µm] | 100000 [17] |
| Flow Rate, scfh [slpm] | 1.5 [0.7] |
| Air gap, microinches [µm] | 200 [5] |
| Average Gap Sense Pressure at Rated Load, psig [Mpa] | 46 [0.32] |
| Natural Frequency*, Hz | 227 |
| Physical Properties: | |
| Length, inches [mm] | 0.6 [15.9] |
| Width, inches [mm] | 1.3 [31.8] |
| Height, inches [mm] | 0.42 [10.7] |
| Ball Seat Diameter, inches [mm] | 0.236 [6.0] |
| Mating Ball Stem Model number | R3M6 |
| Bearing Flatness, microinches [µm] | 20 [0.5] |
| Supply fitting thread, metric [imperial] | M3 |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.029 [0.1] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
