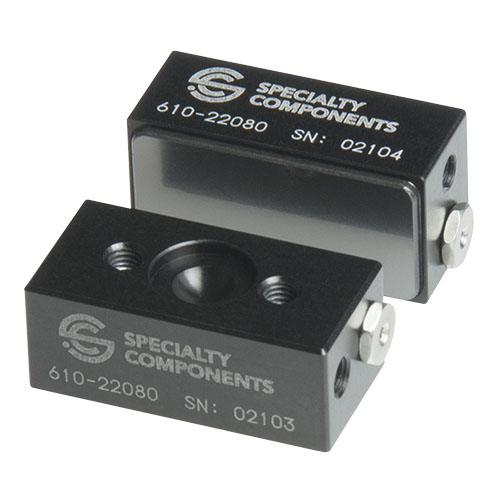

Rectangular Flat Air Bearings LSAP050100 / 610-22080
This flat rectangular air bearing supports frictionless planar (rotational or translational) motion. Although weighing only 9 grams with a footprint area of 0.5 inches2, this air bearing has an 11 pound load capacity. Best suited for smaller stage assemblies.
| Downloads: | |
|---|---|
| Drawing Download | |
| Solid Model | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 11 [48] |
| Stiffness, lbs/inch [N/µm] | 33000 [6] |
| Flow Rate, scfh [slpm] | 0.6 [0.3] |
| Air gap, microinches [µm] | 200 [5] |
| Average Gap Sense Pressure at Rated Load, psig [Mpa] | 42 [0.29] |
| Natural Frequency*, Hz | 171 |

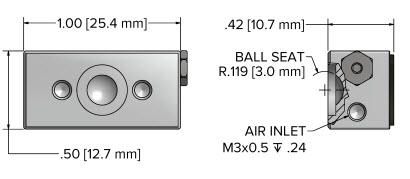

| Physical Properties: | |
| Length, inches [mm] | 0.5 [12.7] |
| Width, inches [mm] | 1.0 [25.4] |
| Height, inches [mm] | 0.42 [10.7] |
| Ball Seat Diameter, inches [mm] | 0.236 [6.0] |
| Mating Ball Stem Model number | R3M6 |
| Bearing Flatness, microinches [µm] | 20 [0.5] |
| Supply fitting thread, metric [imperial] | M3 |
| Material | Aluminum/porous carbon |
| Weight, lbs [N] | 0.019 [0.1] |
| Installation Requirements: | |
| Mating Surface Local Flatness, microinches [µm] | 20 [0.5] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
